HDCVI CAMERA
DH-HAC-T1A21P-U-IL
DAHUA-TECH

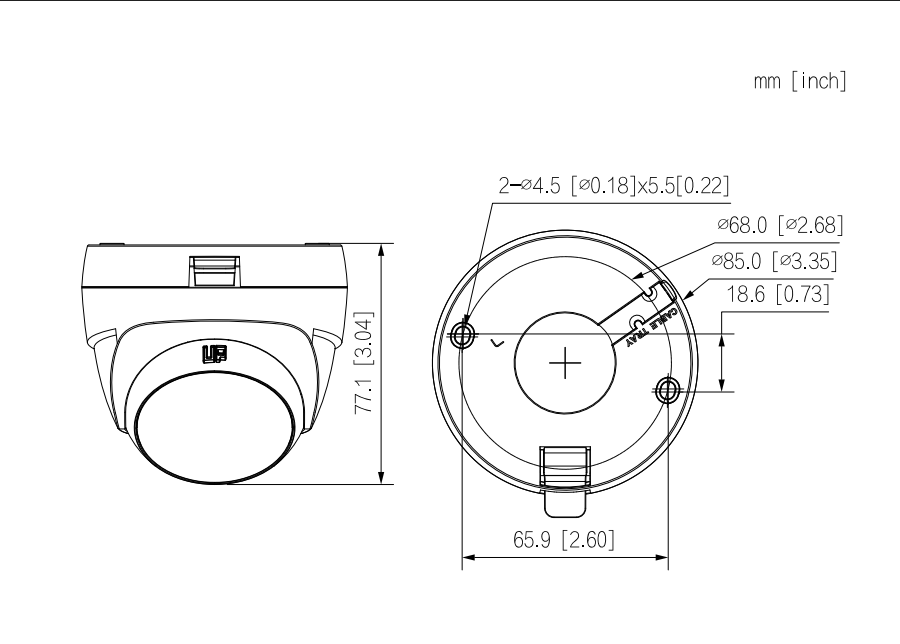

Technical Drawing and Dimensions

This image illustrates the detailed technical drawing of the Dahua DH-HAC-T1A21P-U-IL HDCVI camera. The diagram includes both side and bottom views with precise measurements in millimeters and inches. Key dimensions include a height of 77.1 mm (3.04 in), a base diameter of 85 mm (3.35 in), and mounting hole specifications. This schematic is essential for installation planning, mounting compatibility, and integration into security system setups.
