HDCVI CAMERA
DH-HAC-B1A21P-U-IL-A
DAHUA-TECH

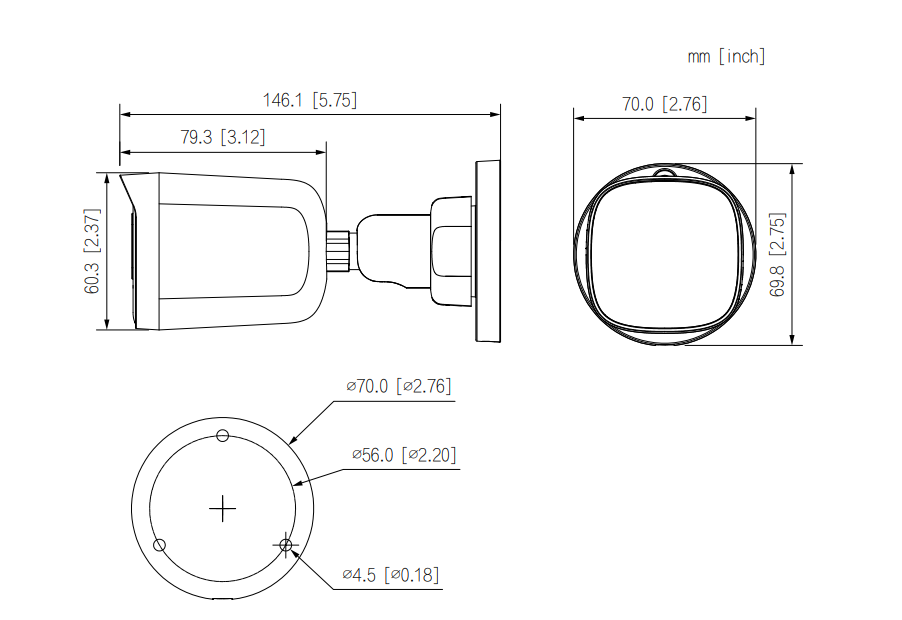

Technical Drawing and Dimensions

The diagram presents side, front, and bottom views with accurate measurements in both millimeters and inches. Key dimensions include a total length of 146.1 mm (5.75 in), a camera body height of 60.3 mm (2.37 in), and a mounting base diameter of 70.0 mm (2.76 in). The mounting plate includes three Ø4.5 mm (0.18 in) screw holes arranged in a 56.0 mm (2.20 in) diameter pattern, ensuring stable and secure installation. This schematic is essential for system integrators and installers to ensure proper planning, positioning, and compatibility during security camera deployment.
